Projection Screen （Mobile）

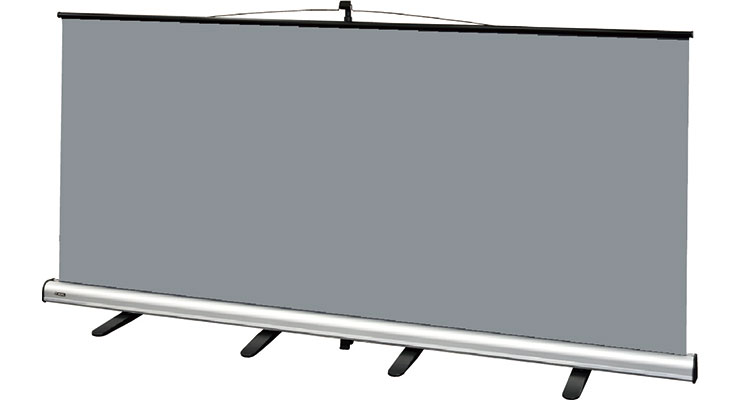

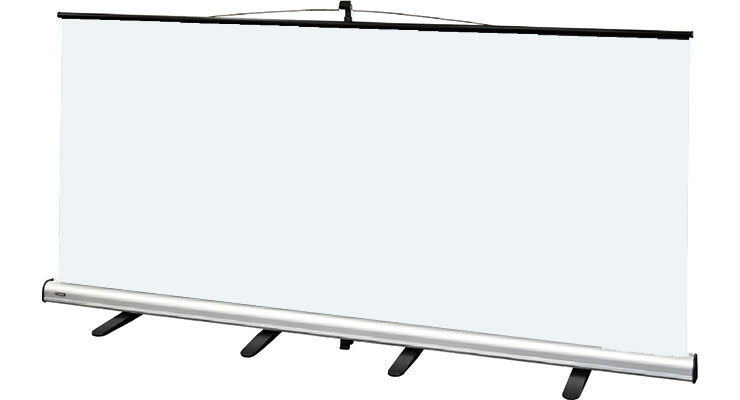

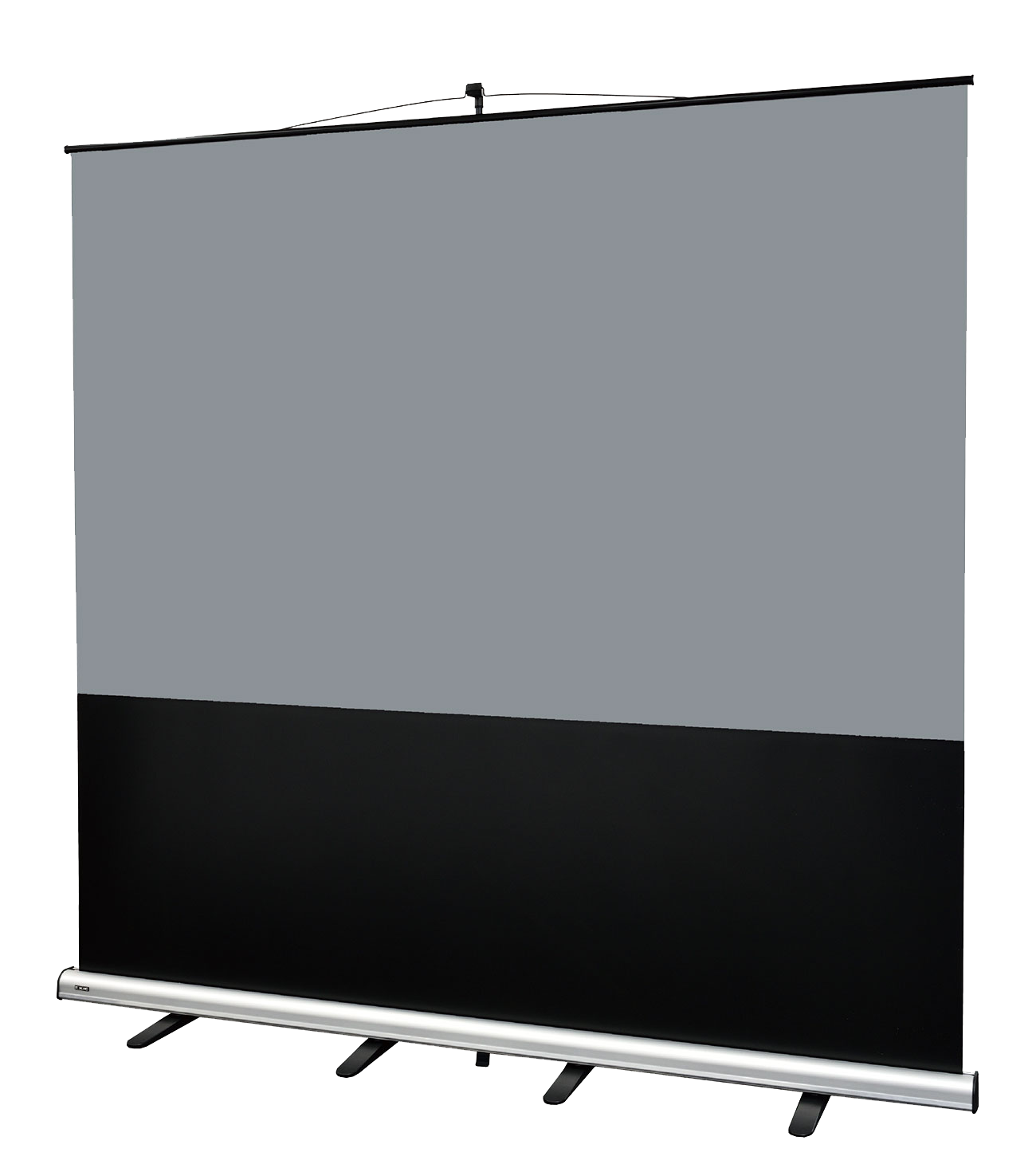

CBMR

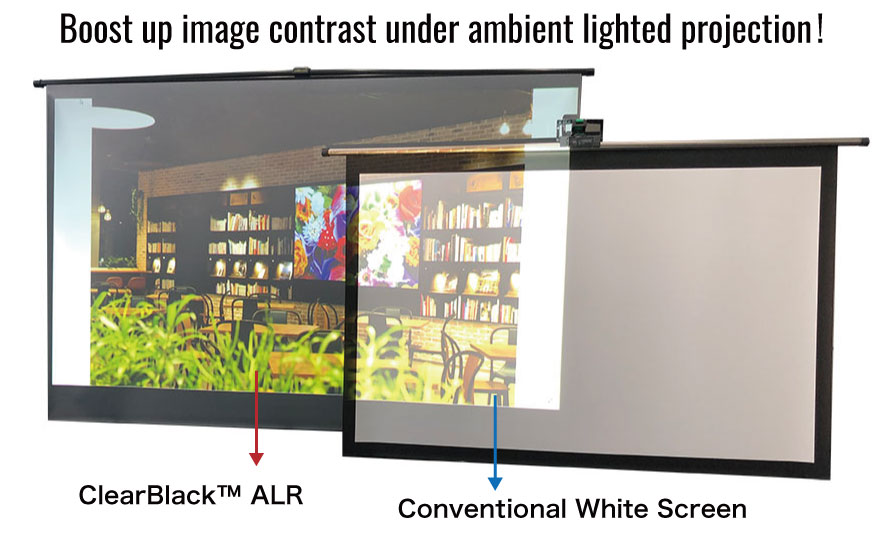

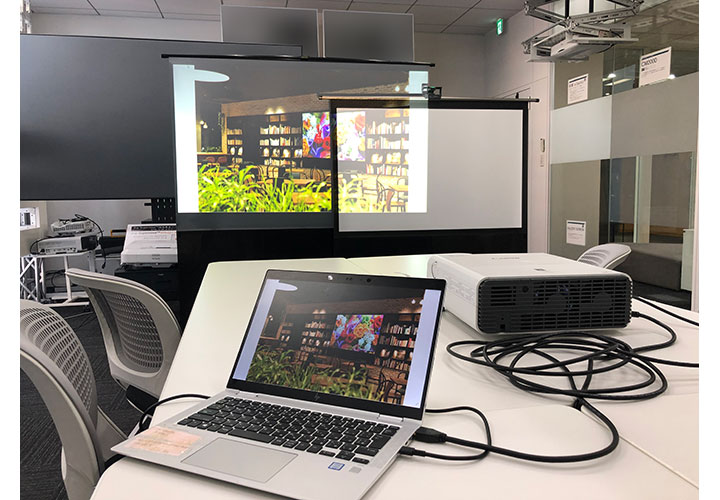

ClearBlack™ projection screen offers clear and high-contrast quality image under ambient lighted condition, with one-hand carriageable lightweight and portability.
The lenticular lensed screen surface will reflect projection light to viewers while rejecting ceiling lights to prevent degrade projection image. The screen film, originally developed by DNP, Dai Nippon Printing Co., Ltd., achieves “best-in-class” image quality in color reproduction, ISF certified.
The screen and a carry case integrated design allows easy-to-fold and carry without any professional installation works.

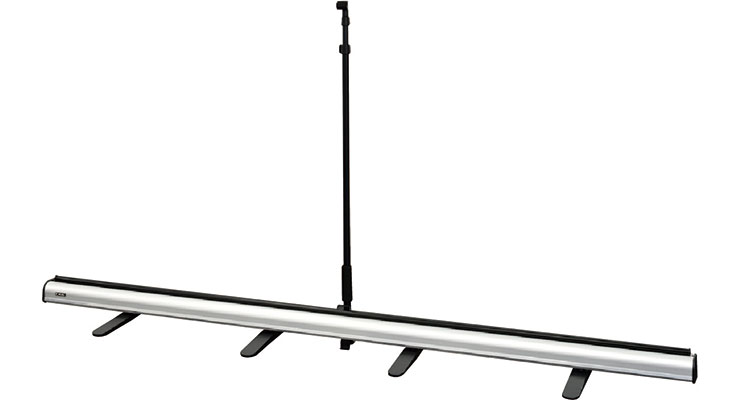

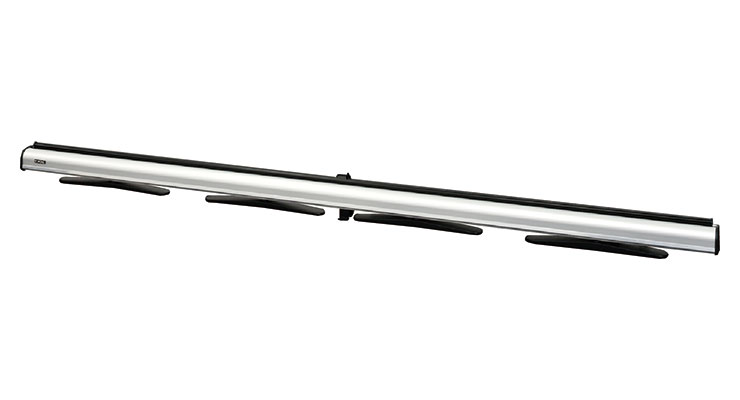

Product in folded (for easy transportation)
Raise the support bar
Pull up the screen as desired height (Max height of the black bottom: 37” for CBMR-WX80, 31.5” for CBMR-WX100)
| Model No. | Screen Format | Screen Size | Image Size (W x H) | Max. Height (above floor) | Weight (lbs) | Drawing Picture | Assembly Manual |
|---|---|---|---|---|---|---|---|
| CBMR-WX80 | 16:10 | 80” diagonal | 67.8” x 43.7” (1,723 x 1,110mm) | 84.65” (2,150mm) | 14.3 (6.5kg) | KICI_CBMR-WX80 | KICI_AssemblyInstruction_VMR_CBMR |
| CBMR-WX100 | 16:10 | 100” diagonal | 84.8” x 53.0”(2,154 x 1,346mm) | 88.43” (2,246mm) | 17.4 (7.9kg) | KICI_CBMR-WX100 |

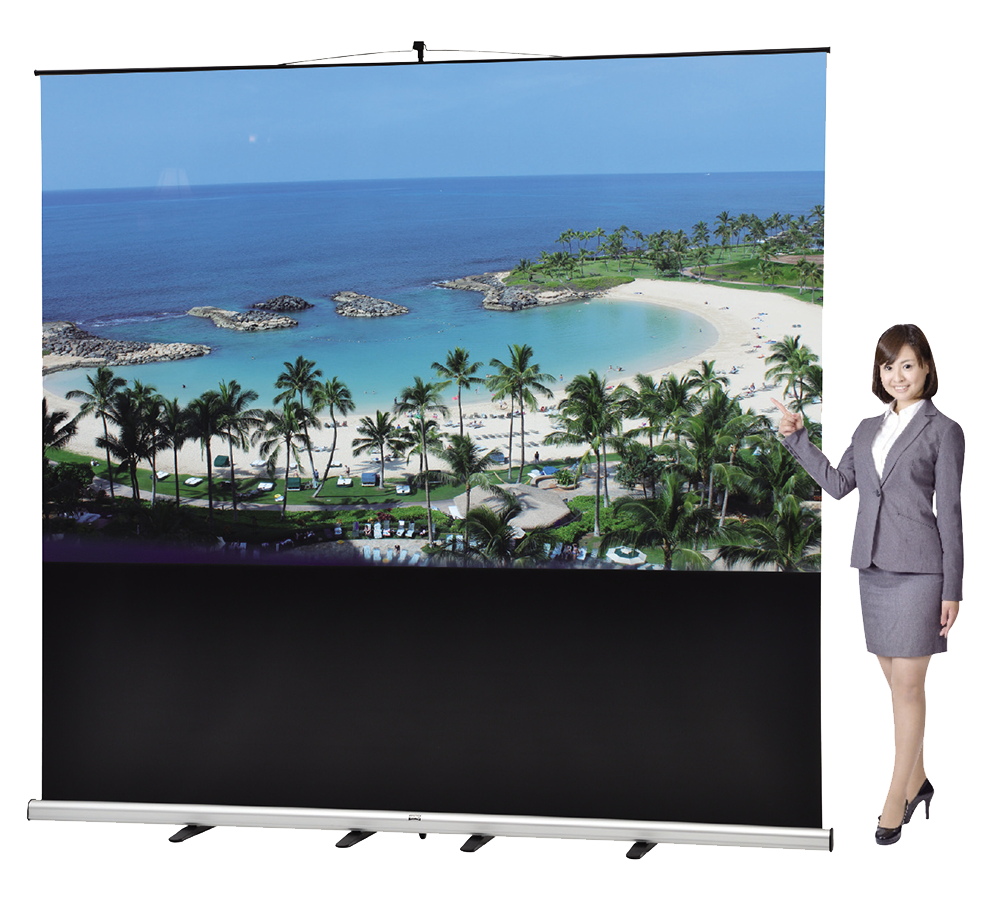

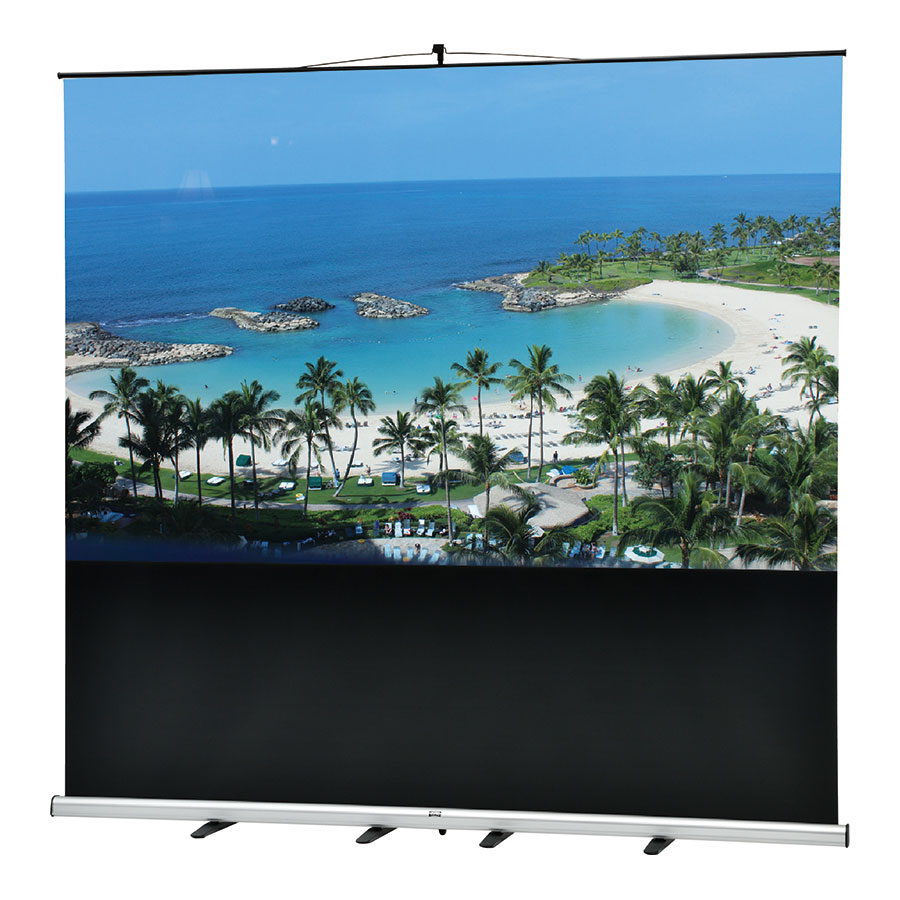

VMR

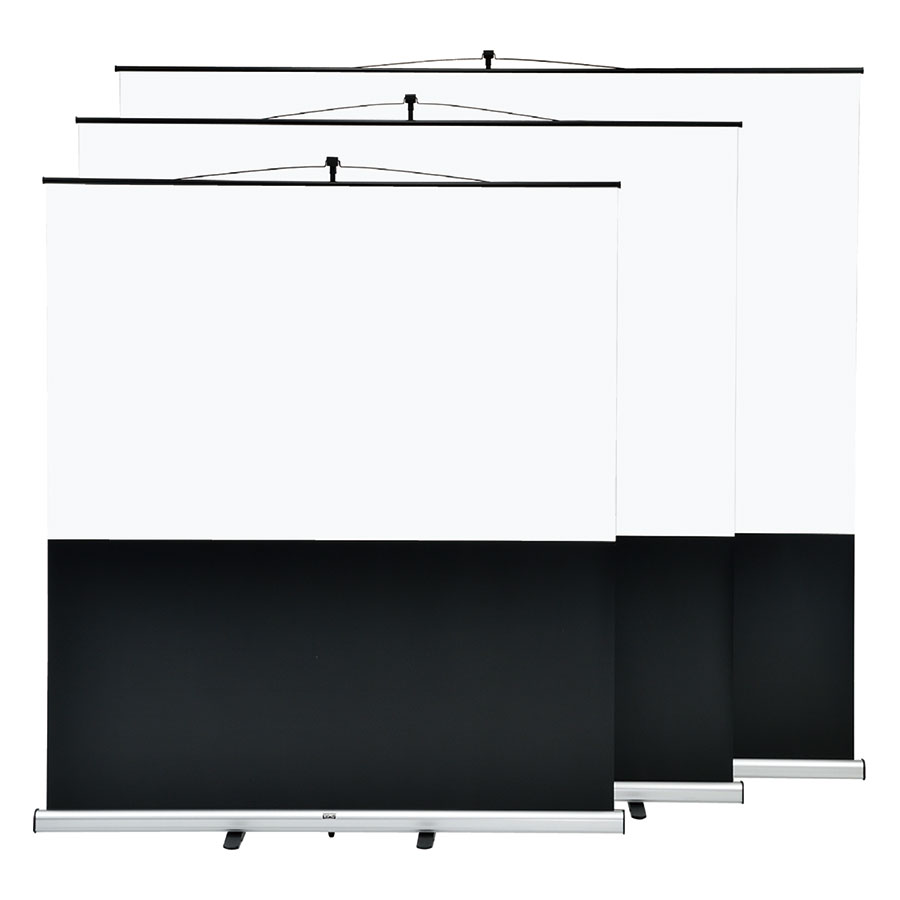

VMR mobile projection screen offers clear and bright quality image in maximum 120” diagonal size, with one-hand carriageable lightweight and portability.
The screen can be easily applied to a variety of user cases with satisfactory large-scaled image! 3 sizes are in lined up, 80”, 100” and 120”, all with 16:10 image format.
The screen and its carry case integrated design allows easy-to-fold and carry without any professional installation works.
Product in folded (for easy transportation)
Raise the support bar
Pull up the screen as desired height (Max height of the black bottom: 37” for VMR-WX80 and WX100, 35.2” for VMR-WX120)
| Model No. | Screen Format | Screen Size | Image Size (W x H) | Max. Height (above floor) | Weight (lbs) | Drawing Picture | Assembly Manual |
|---|---|---|---|---|---|---|---|
| VMR-WX80 | 16:10 | 80” diagonal | 67.7” x 42.5”(1,720 x 1,080mm) | 84.65” (2,150mm) | 12.6 (5.7kg) | KICI_VMR-WX80 | KICI_AssemblyInstruction_VMR_CBMR |
| VMR-WX100 | 16:10 | 100” diagonal | 84.6” x 53.1” (2,150 x 1,350mm) | 95.28” (2,420mm) | 15.7 (7.1kg) | KICI_VMR-WX100 | |
| VMR-WX120 | 16:10 | 120” diagonal | 101.5” x 63.6”(2,580 x 1,625mm) | 103.94” (2,640mm) | 18.3 (8.3kg) | KICI_VMR-WX120 |
Projection Film
Stock images are for illustration purposes. Actual product may vary.
High Transparency/Wide Viewing Angle

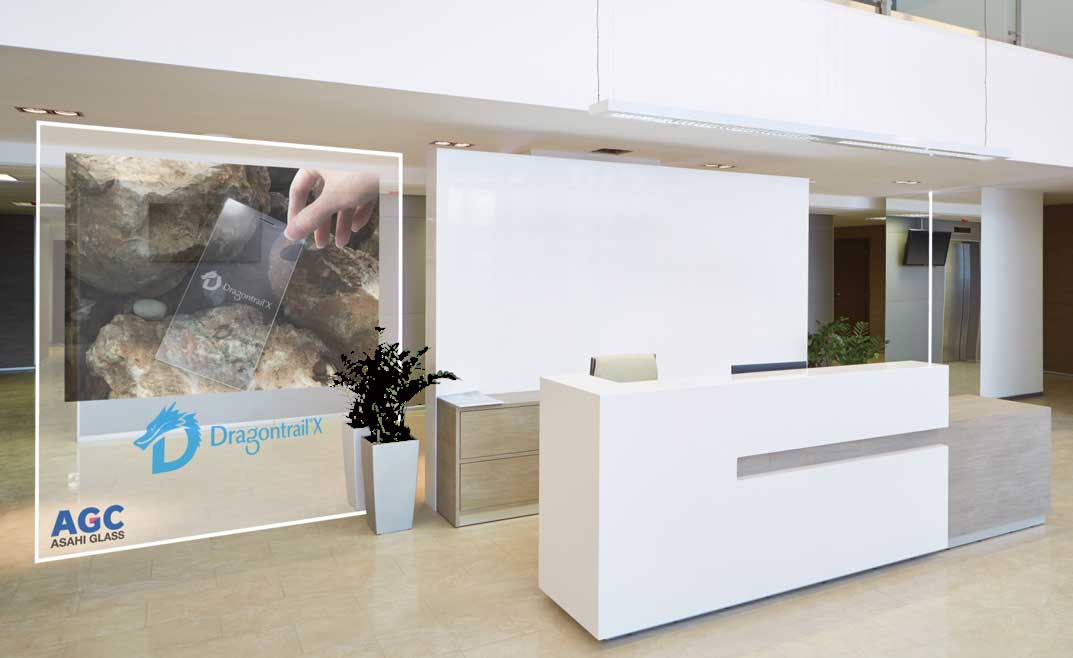

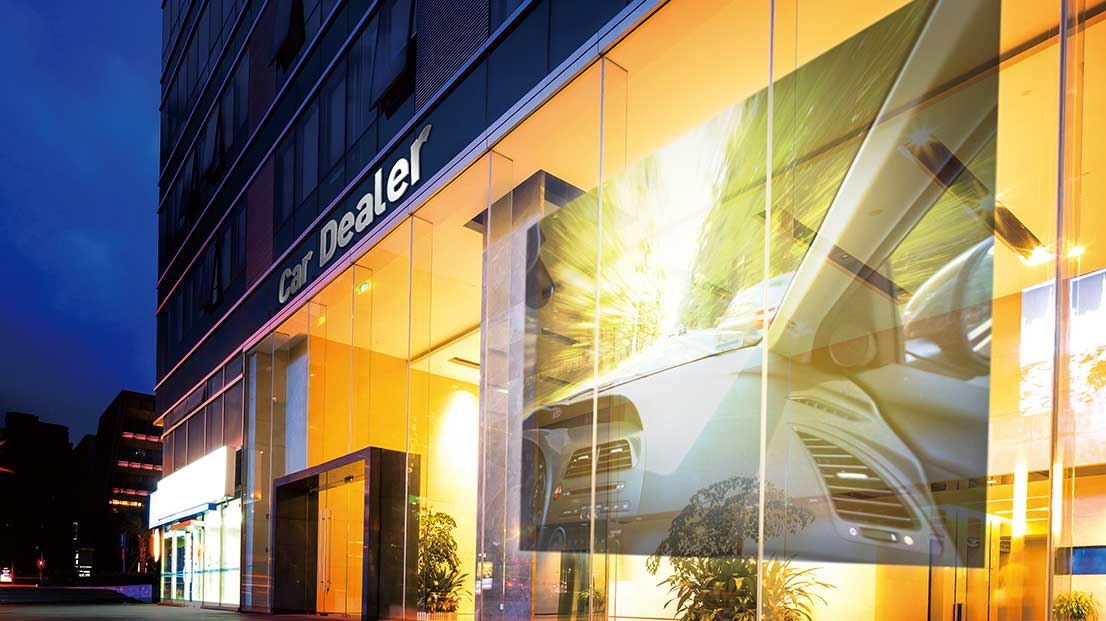

AGC Glascene™F is a high performance transparency film screen for projecting on glass windows. With AGC's unique optical technology and structure design using best materials, transparency and image visibility are successfully achieved.
■Front Projection and Rear Projection
Glascene™F comes with both Front and Rear projection models.
■Extreme Brightness Quality
Glascene™F has one of best quality of bright uniformity, achieving a wide-angle viewing capability, even by steep angled projection such as UST projectors.
■Low Haze
Glascene™F has very low haze, keeping window's transparency.
※Available for existing window glass
※Film sticks with water
| Projection | Front | Rear |
|---|---|---|
| Model | Bright | Bright |
| Light Transmission | 36％ | 64％ |
| Haze Ratio | 5％ | 20％ |
| Film Size | Max. Width 1,260mm × 30m / roll | |
| Self-Adhesive | On window side | |
| M.S.R.P. | Open Price | |
Remark : L.T. and H.R. are typical values tested on 3mm thickness float glass. The value may vary upon conditions.
All Adhesive Type Films Hard-Coated for Easier Installation
■360-degree Super Wide Viewing Angle
●Both front/back sides of the screen film pictures high-brightness and high-definition image.

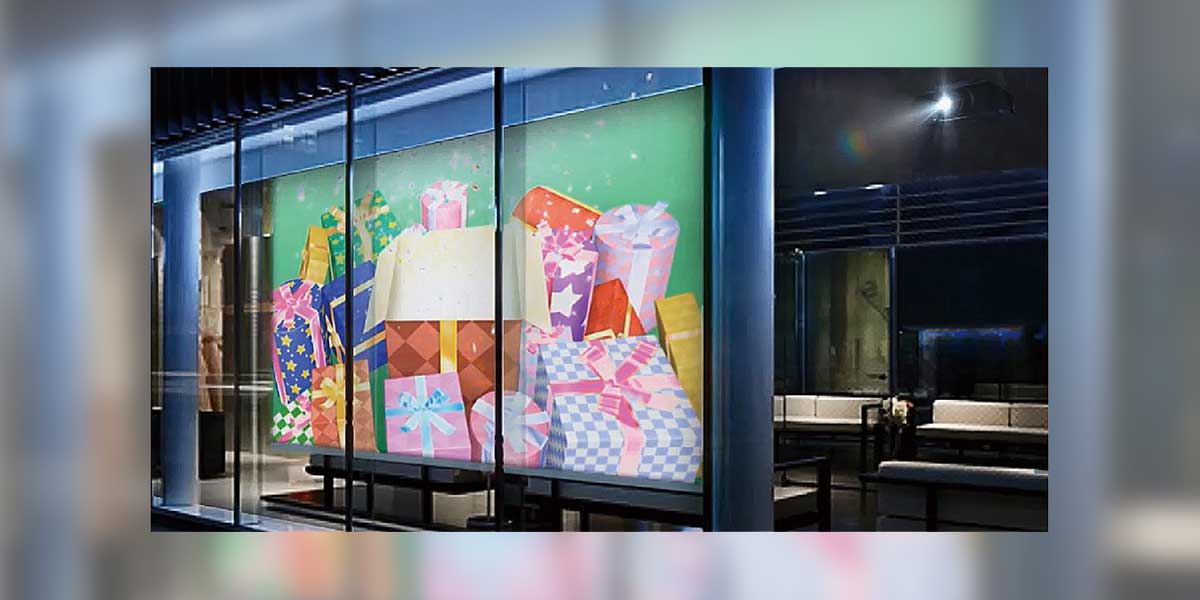

●Wide viewing image angle on display windows appeal to people on the street in an expanded location.
■Rear Projection by UST Projector
●Even rear projection by UST projector allows perfect quality luminance image without distortion.
●Maximize image size in a small shooting space.
■Over 100-inch Image with Easy Installation
●Easier installation and more cost effeciency compared to LED/LCD monitor displays.
■4 Types of Films Available for Various Applications
●High Luminance (White Screen) Achieves brighter image.
●High Contrast (Grey Screen) Black stands out, even under ambient light. Very bright color image.
●Clear/Hight Clear Offers an impression of floating and creates a seethrough airy open space.
※Available for existing window glass
※Film sticks with water
| MODEL (Adhesive) | MODEL (Non-Adhesive) | Luminance/Transparency | Film Size (per roll) |
|---|---|---|---|
| MPRS-W100AH | MRPS-W100P | High Luminance | 1,524mm × 10m / roll |
| MRPS-G100AH | MRPS-G100P | High Contrast | |
| MRPS- T100AH | MRPS-T100PR | Clear | |
| MRPS-C100AH | MRPS-C100PR | High Clear |
Sharp & High Contrast Image
NICCA DiaLumie® is a film screen for high contrast projecting image. Nano-sized diamond reflection technology enables to project with high transparency adding sharp and crisp contrast.
■Transparent flim achieves projection image in sharp and vivid contrast
With DiaLumie®'s unique nano diamond layered screen structure, DiaLumie® keeps its transparency while showing clear images at the same time.
■360-degree viewing angle with high quality color reproduction
Another feature of DiaLumie® is its visibility from any angle. Images from DiaLumie® sparkles and is best used for music gigs, showroom presentations, and even at party scenes.

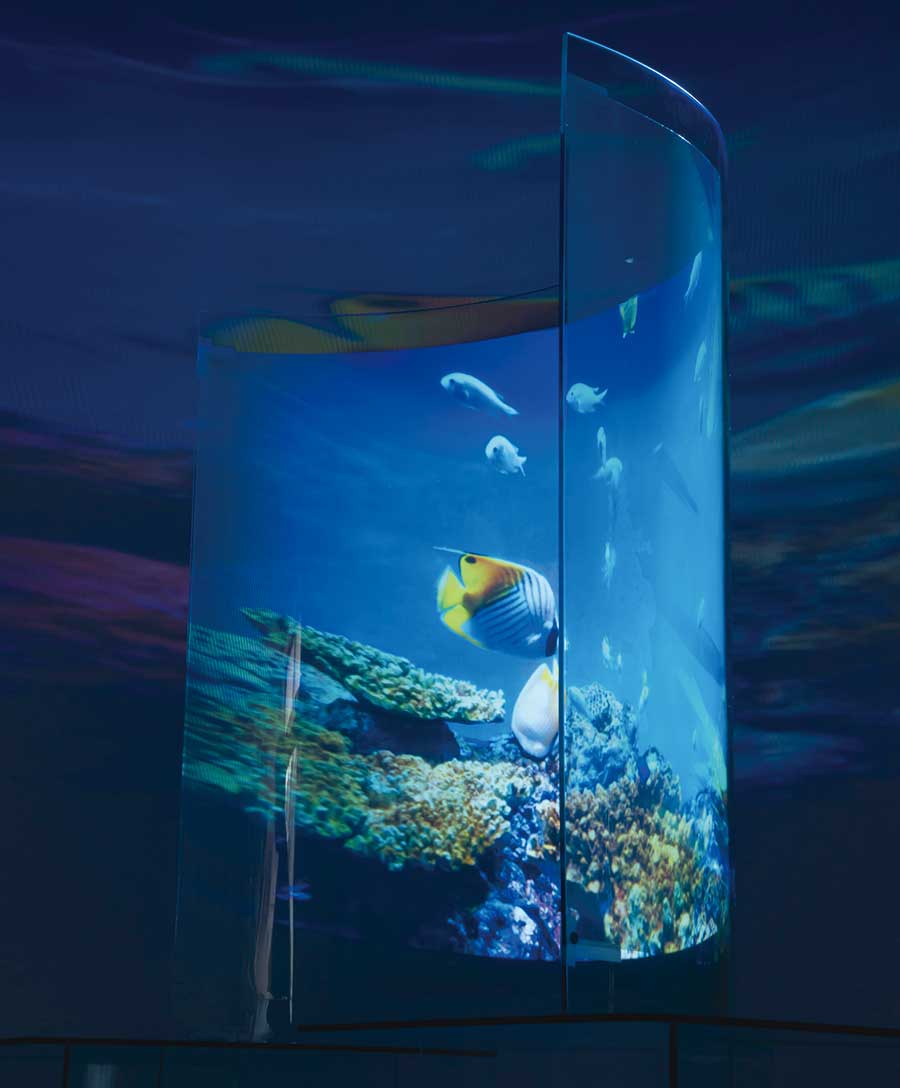

■Large size? Curved surface? No problem!
DiaLumie® is a sticker type projection screen film, simply applied to a glass panel by its selfadhesive, even working for curved surfaces. DiaLumie® is also good to make any large size image projection by tiling the film for projection mapping applications.
■Offering a Spatial Presentation

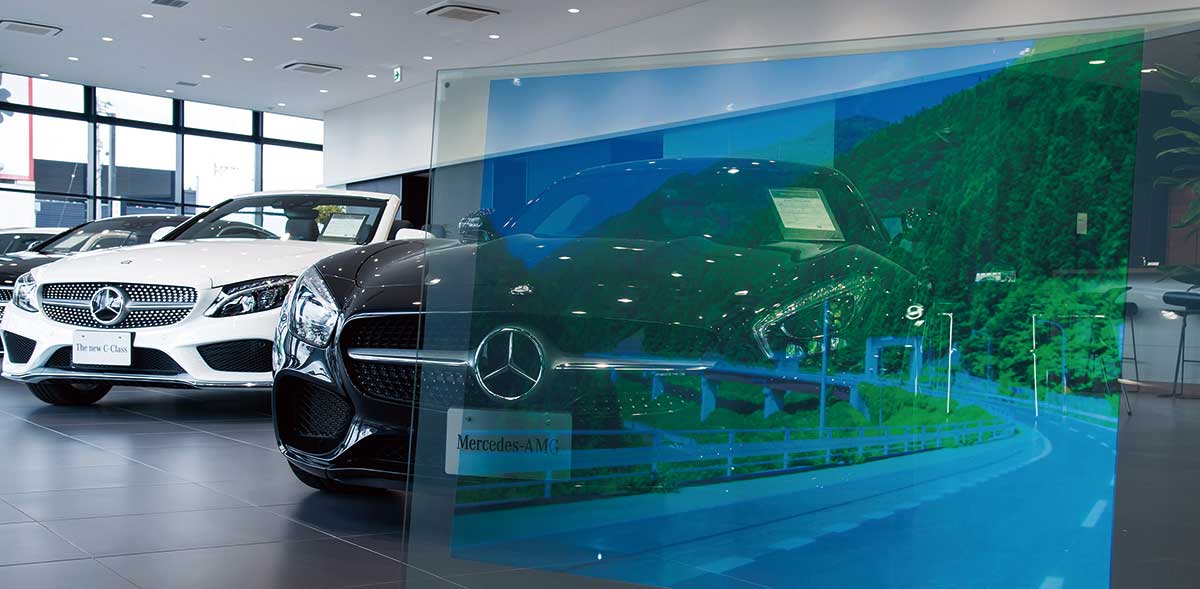

At places where many people stop by and pay attention, DiaLumie® is a perfect eye-catch for sales promotions and displays.
| Model No. | NDL-270SA |
|---|---|
| Film Clearness | Clear |
| Haze Ratio※ 1 | 27% |
| Light Transmission※２ | 82% |
| Film Roll Size | Max.Width 1,260mm × Max.Length 10m |
| Screen size customize | Custom size available. Ask for details |
| M.S.R.P. | Open Price |
※ 1 Haze Ratio : An indicator for film transparency complied to JIS K7136. Lower values represent for
optically clearer.
※ 2 Light Transmission : Value for measuring film transparency complied to JIS K7136. Larger numbers represent higher transparency.
/// The H.R. and L.T. data are typical results under testing conditions. The values and numbers may vary upon conditions///
※ Under strong ambient light or sunlight conditions, the projection image may not be clearly seen.
※ Please consult before the film application for the product capability and projector recommendation for better performance.
DiaLumie® is a registered trademark of NICCA Chemical Co., Ltd.

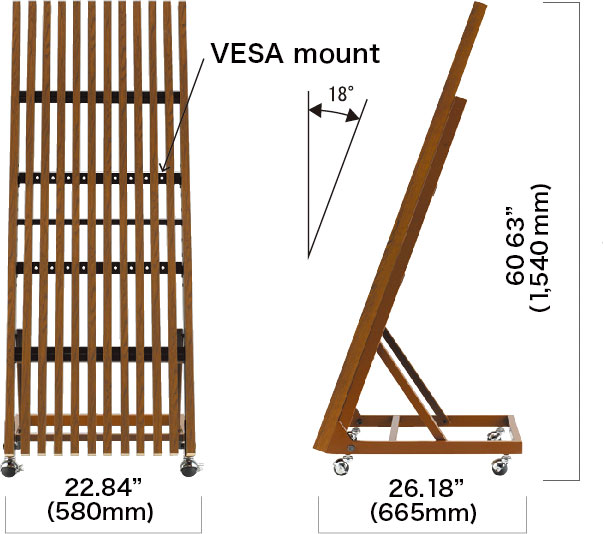

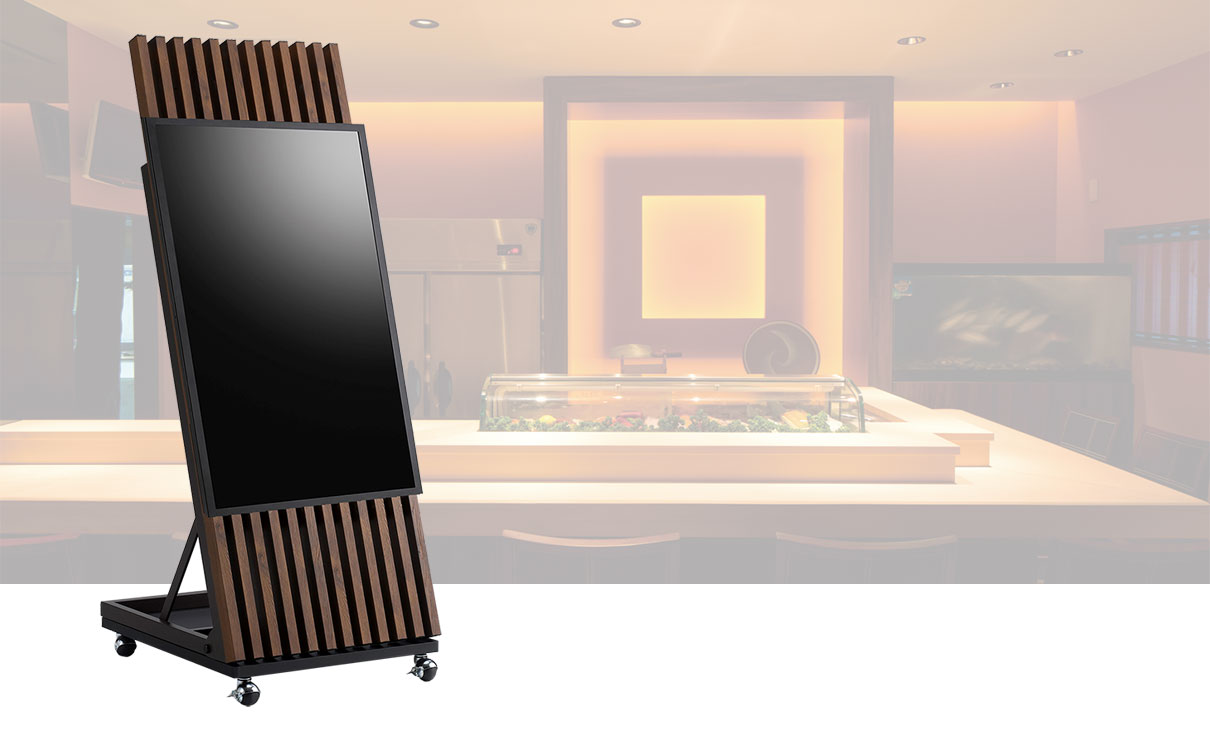

HNG
The Hengel display stands fit in your designed interior. The woody designed stand will softly approach to your attention rather than insipid steel boned stands .

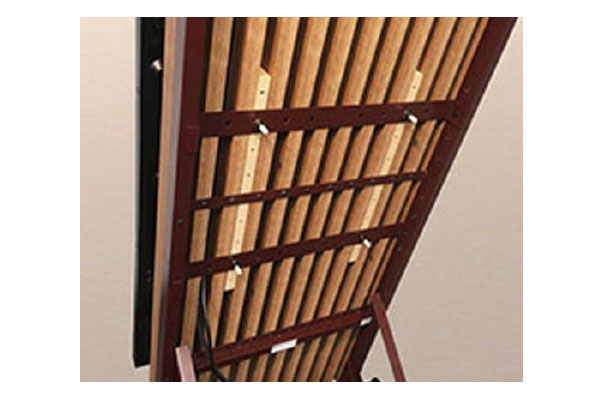

VESA direct mount with stud bolts and wing nuts eliminates unnecessary space between the display and stand for the maximum stability and anti-falling capability

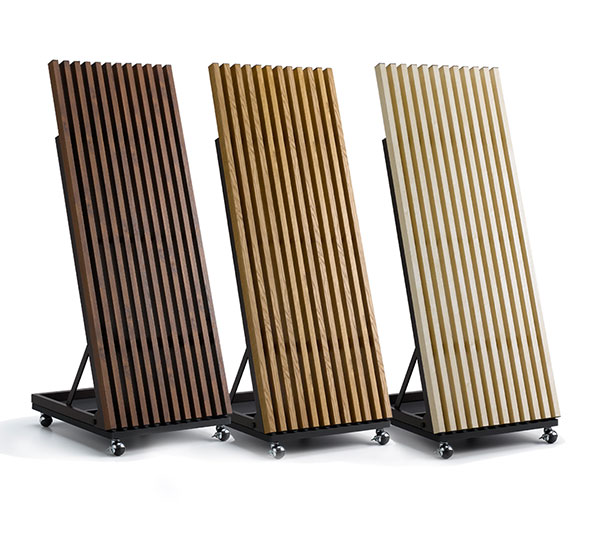

3 frame colors available “Dark Brown” “Natural Finish” “White Wood”

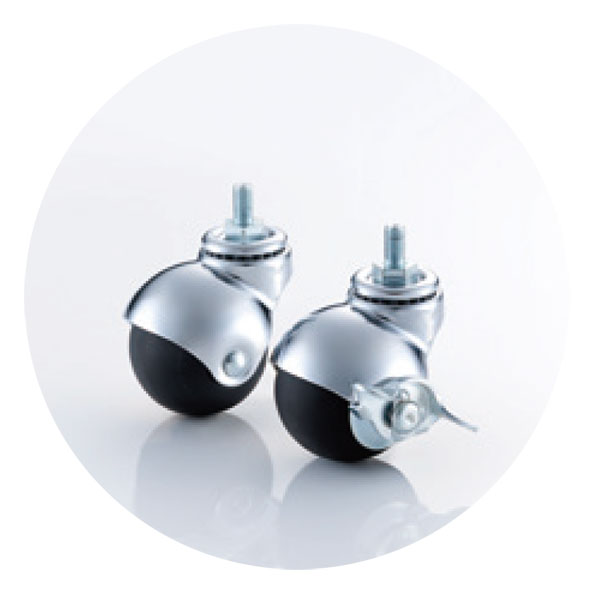

Ball Wheel Caster (w/front wheel lock )

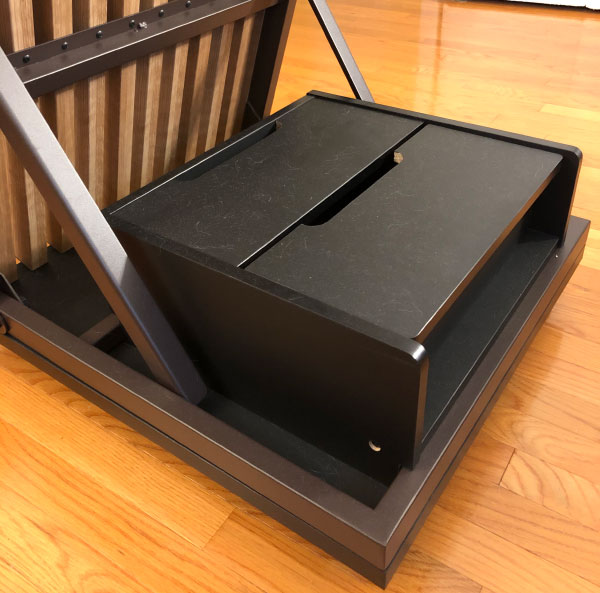

STB Box (AC-STB11-BK,optional)

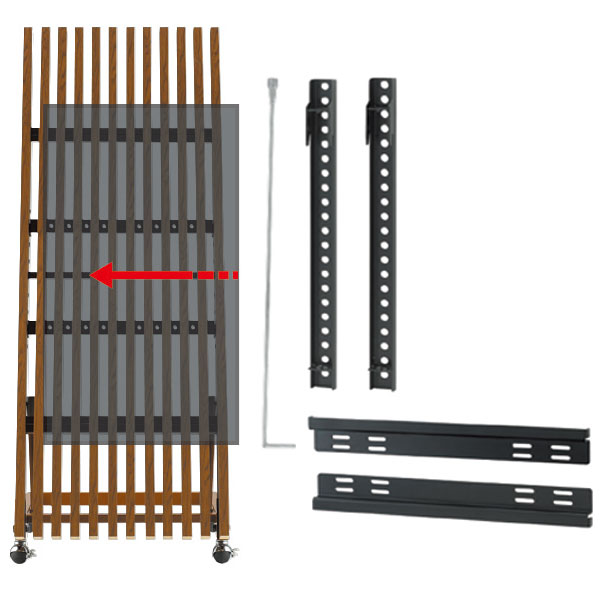

Universal Mount (MH-STD11-BK)
| Model No. | Color | Dimension | Display Size (recommended) | Display Angle | Payload | Assembly Guide |
|---|---|---|---|---|---|---|
| SS-HNG11-NA11 | Natural | 22.84W x 26.18D x 60.63H (580 x 665 x 1,540mm) |
32 to 50 inch (diagonal) | 18° | 66 lbs (30kg) | KIC_HNG11_MANUAL_ENG |
| SS-HNG11-DB11 | Dark Brown | |||||
| SS-HNG11-WW11 | White Wood |
A display pictured above is not included in this product.

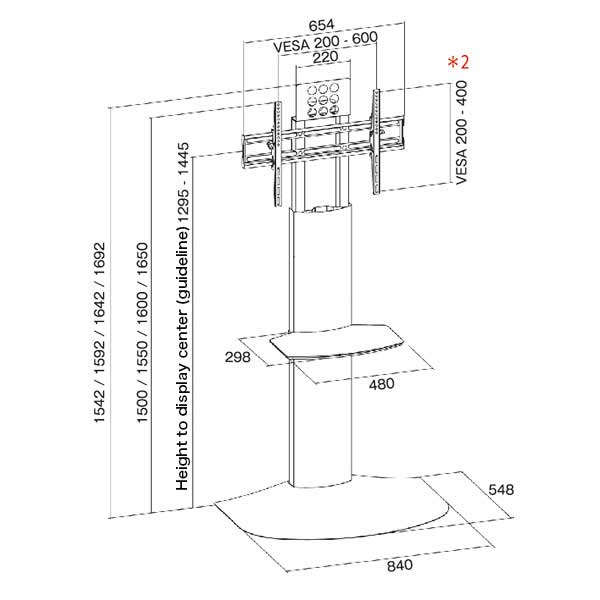

MTF

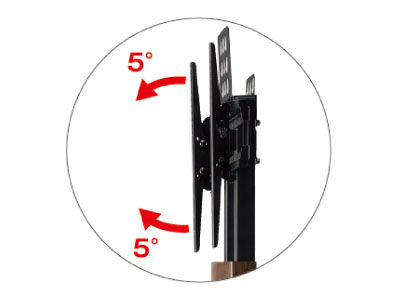

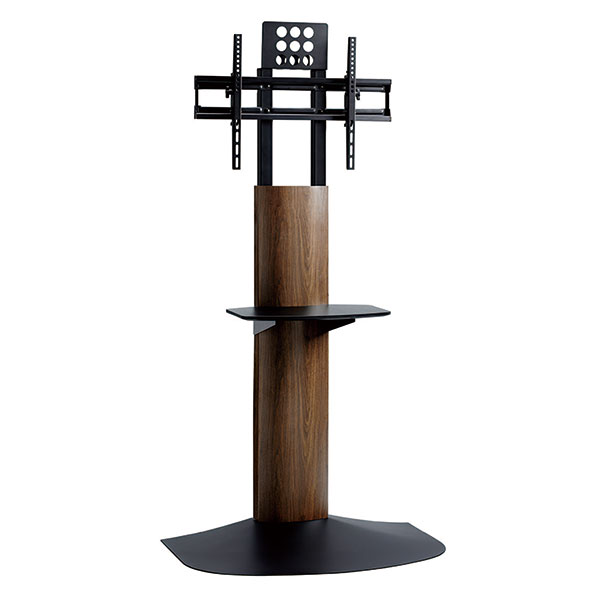

Vertical Tilt Adjustable
The VESA complied display mount system allows 5 deg. tilting to each up/down for better visibility. (The tilt adjustments may have some limitation due to display sizes, or VESA mount positions.)

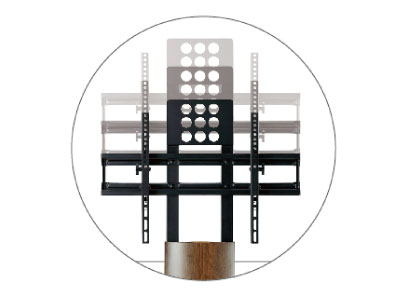

Adjustable Display Height
The backbone display mount frame allows 5.9" (150mm) of the display height range

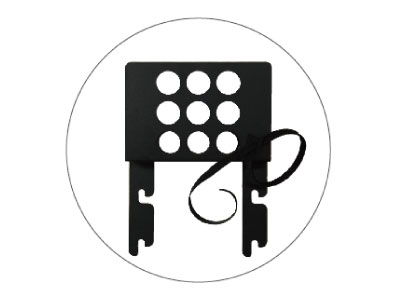

STB Holding Mount
(7.9"W x 2"D x 5.9"H)
(220 x 50 x 149mm)

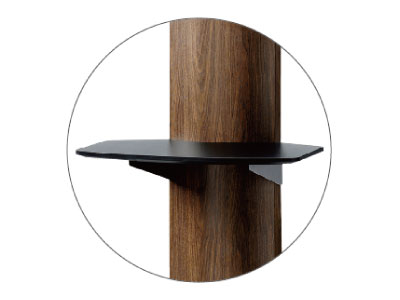

Height Adjustable Shelf
(18.9"W x 11.7"max.D)
(480 x 298mm max D)

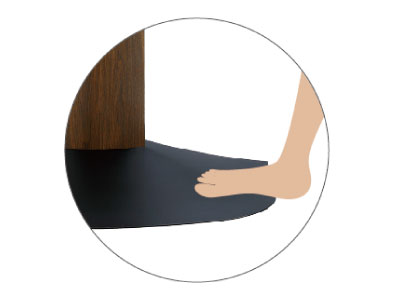

Carved Foot Panel

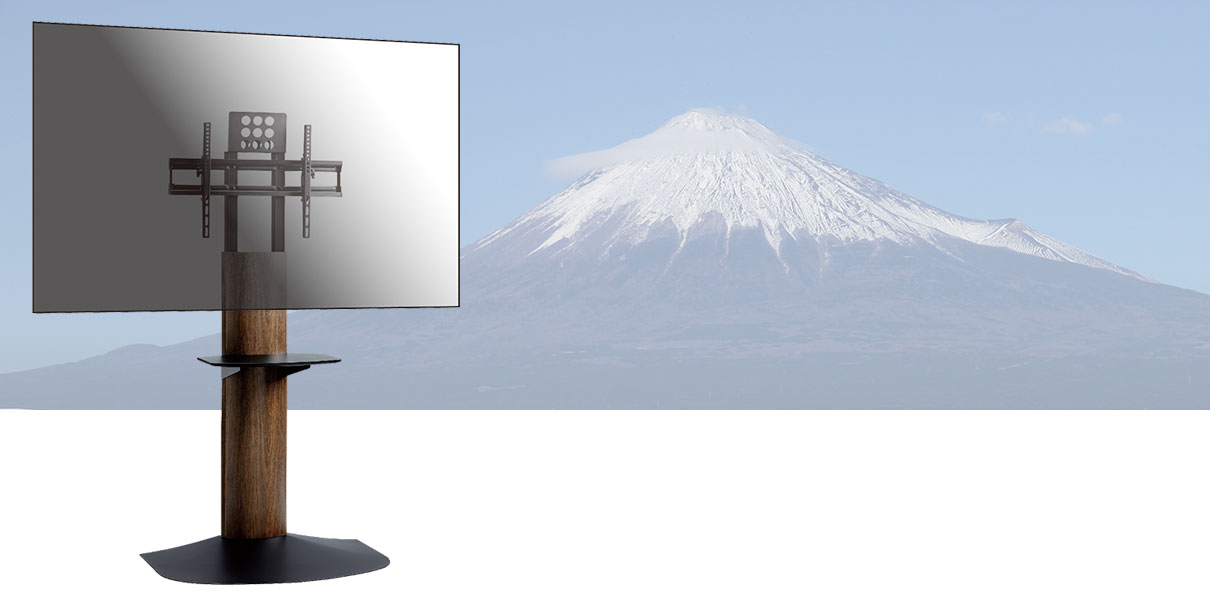

The Mt. Fuji looking ridge-lined shape with minimized leg-floor level difference flatters the product design and prevents stumbling
| Model No. | Color | Display Height | Measurement | Display Size | Display Tilt | Display Loading | Assembly Guide |
|---|---|---|---|---|---|---|---|
| SS-MTF11 | Black/Walnut | 4 range adjustable height | 33.1"W x 21.6"D x 60.7"-66.6"H (840 x 548 x 1,542 - 1,692mm) |
Up to 77" (65” for 66.6”H [ 1,692mmH ] setting) |
-5 to +5 | 99lbs. [ 88lbs for 66.6”H setting ] (45kg. [ 40kg for 1,692mmH setting ]) |
KIC_MTF11-MANUAL_ENG |
SS-CVL21-WW11 White Wood

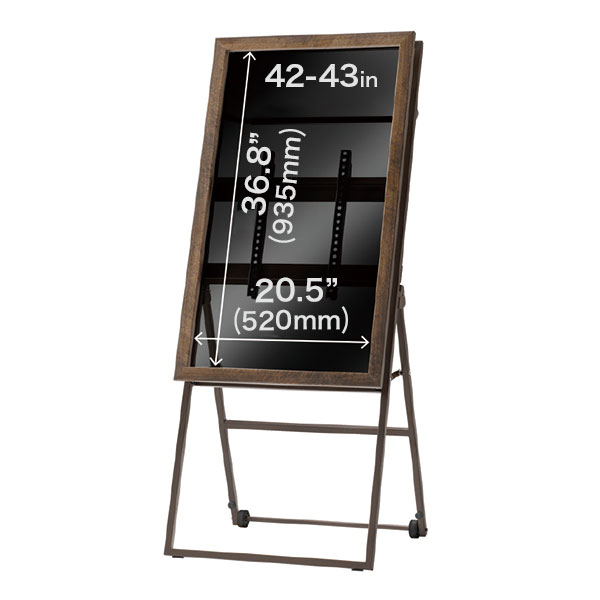

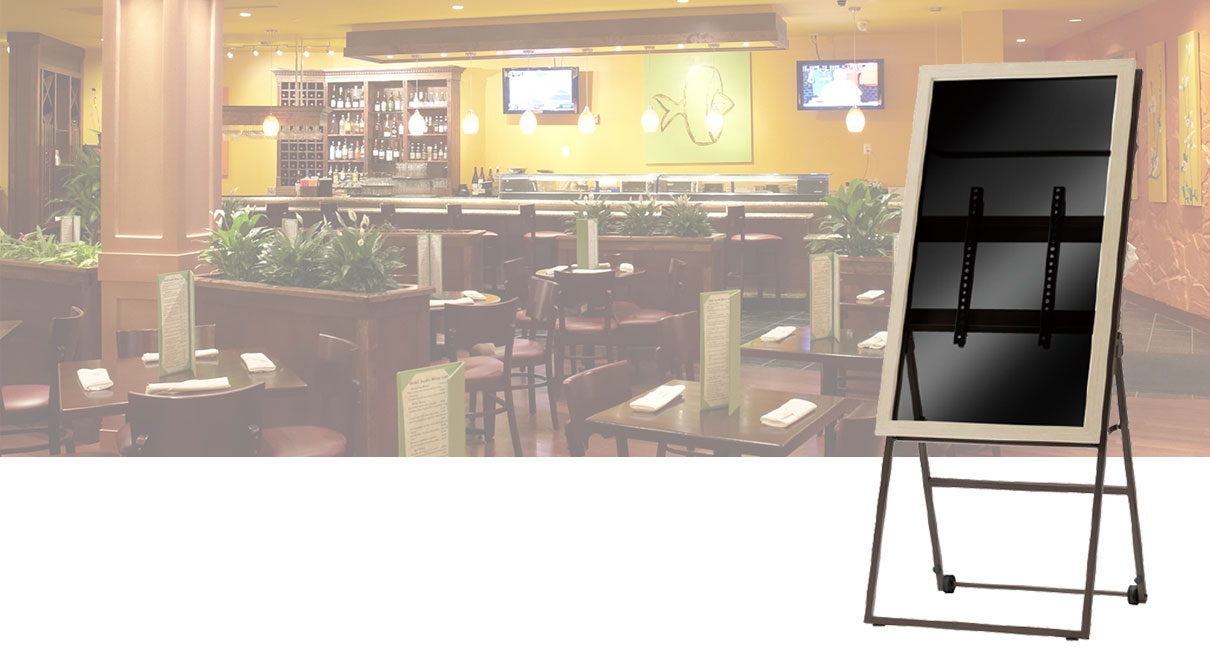

CVL
The Easel shaped display stand “Chevalet” dresses up your digital signage display like an old-fashioned blackboard and makes your daily use in easy and convenient.
SS-CVL21-DB13 Dark Brown

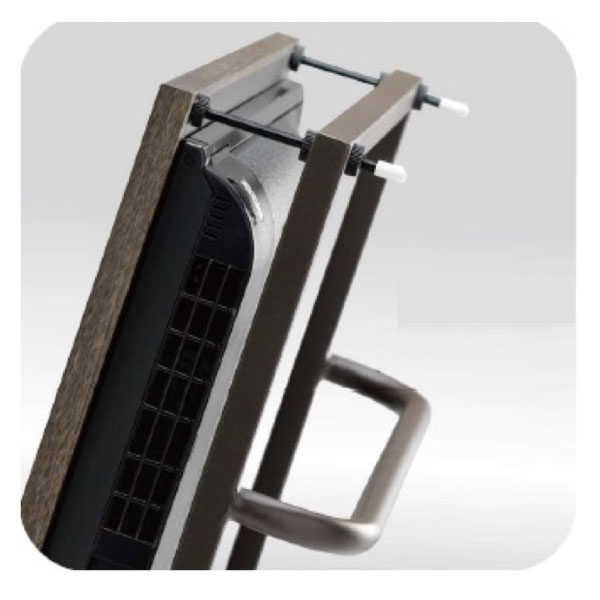

Adjustable wooden frame allows mounting various display with thickness min 1.38” (35mm) to max. 3.74” (95mm).

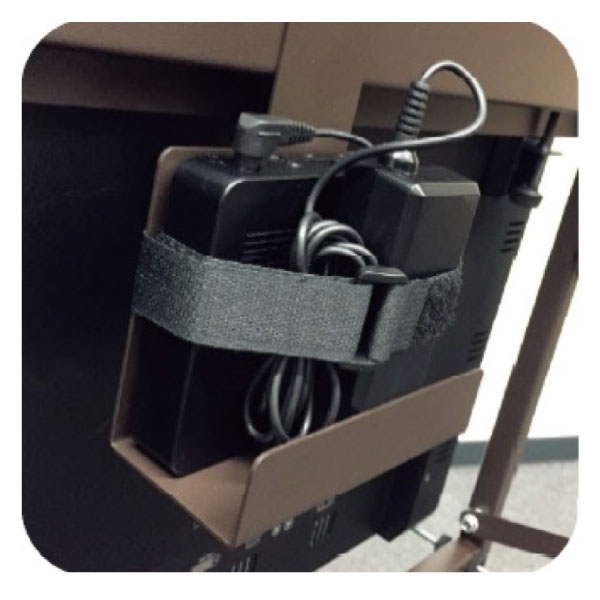

Hanging shelf with holding belt is convenient to place STB, power cables, etc. （Optional）

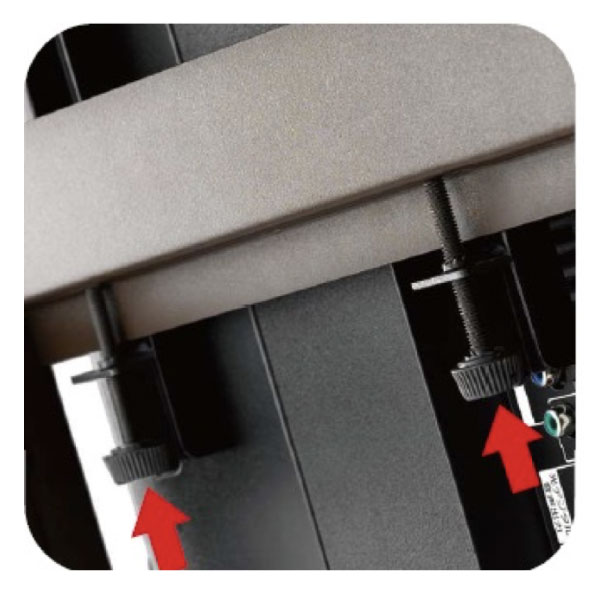

Fastening display on to VESA frame by screwing towards vertical direction for easy maintenance.

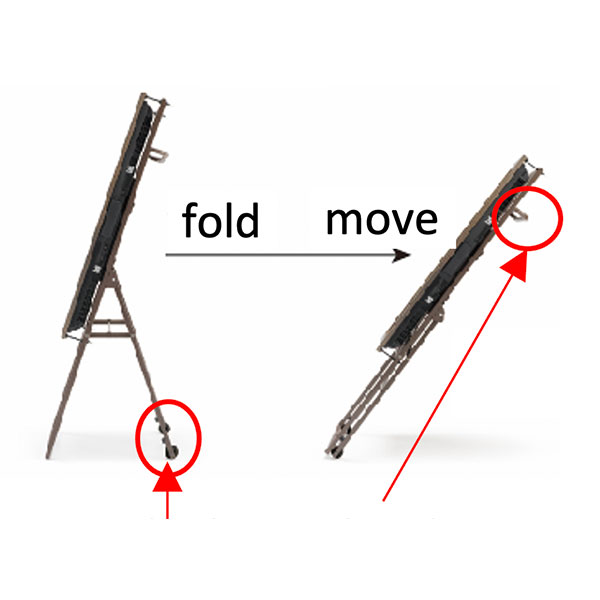

2 wheels and a handle for easy transportation
*1 The height may vary due to the display thickness.

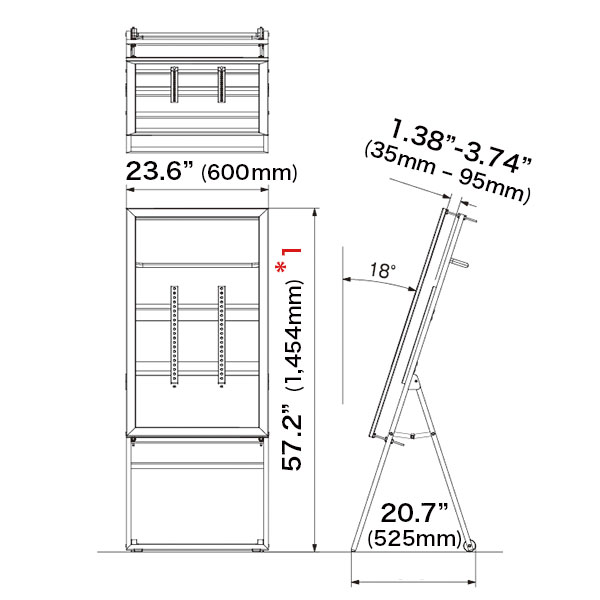

| Model No. | Wood Color | Outer Dimension | Display Size (recommended) | Display Angle | Payload | Display Image Size | Available Display Thickness | Assembly Guide |
|---|---|---|---|---|---|---|---|---|
| SS-CVL21-WW11 | White Wood | 23.6”w x 20.7”d x 57.2”h (600 x 525 x 1,454mm) (Height may vary due to display size) |
42 to 43 diagonal inches | 18 degree | 66 lbs (30kg) | 20.5” L x 36.8” H (520mmL x 935mmH) |
1.38” – 3.74” (35mm – 95mm) |
KIC_CVL21-MANUAL_ENG |
| SS-CVL21-DB13 | Dark Brown |

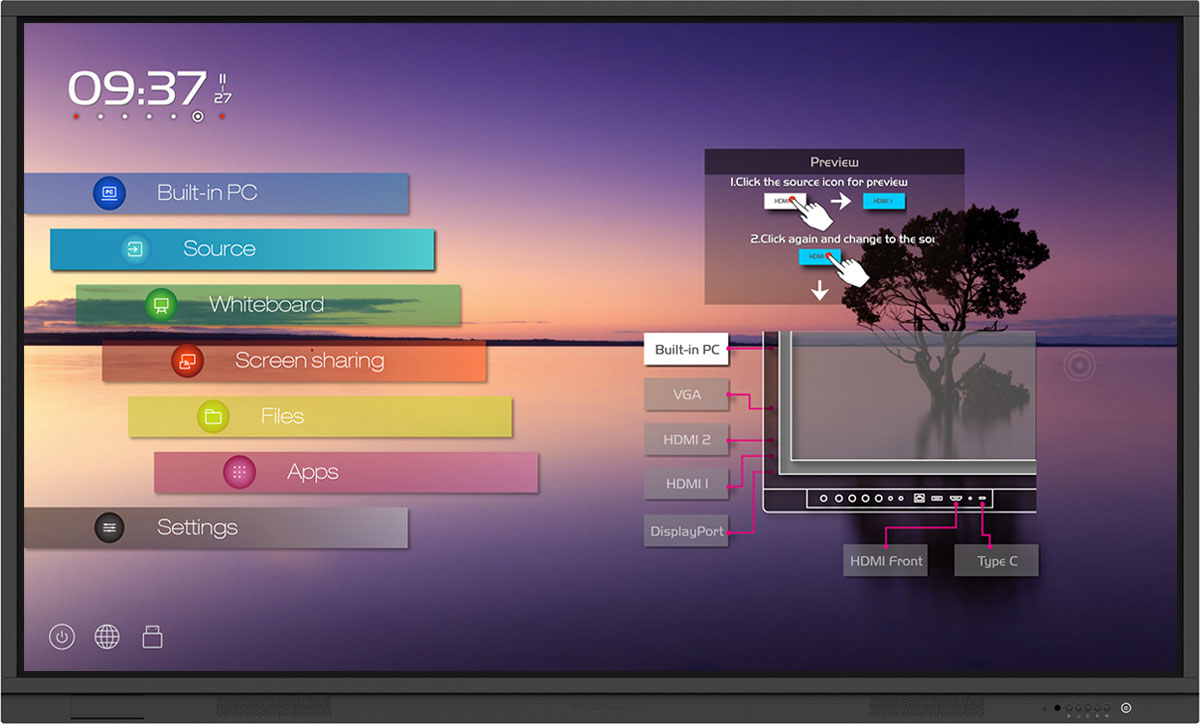

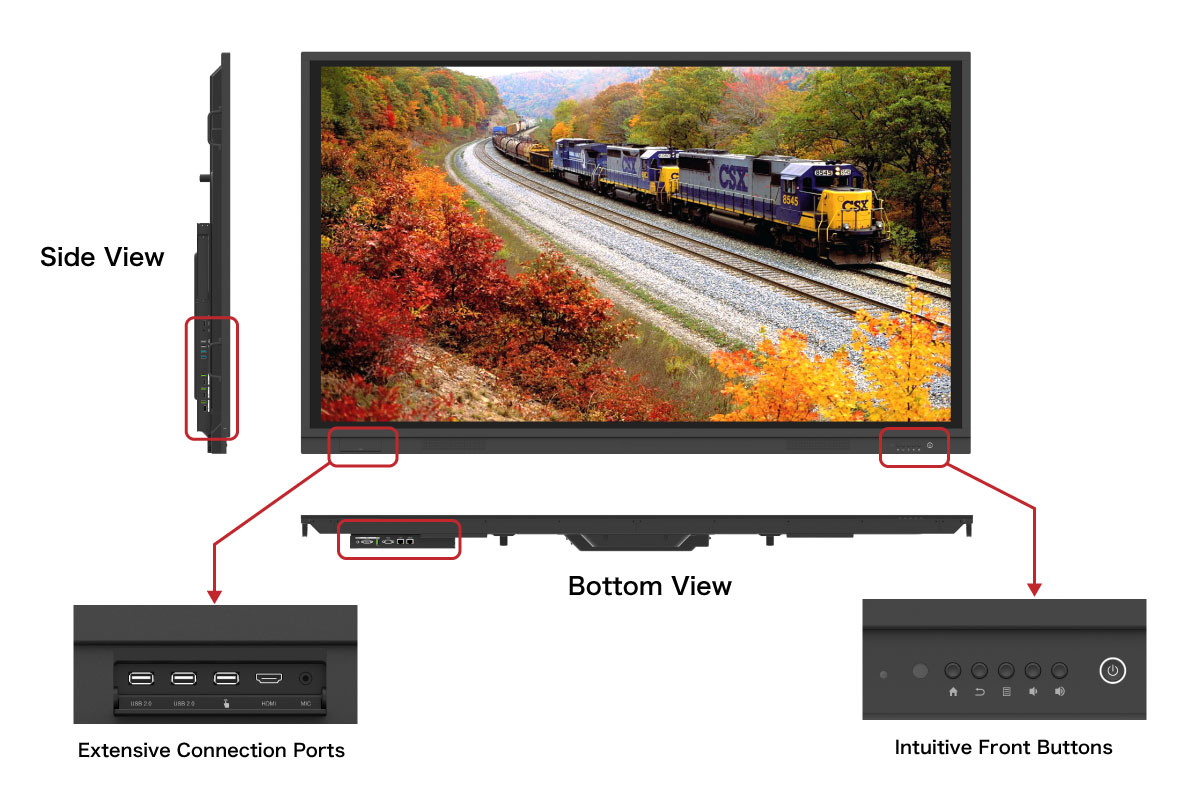

The Interactive Touch Screen Board “TechSlate™” provide smooth e-writing, connecting, sharing, filing, and operating to fully support your teaching performance.
High-definition display (4K UHD)
Wireless screen sharing (Airplay, Google Cast, Mirror OP)
Instant whiteboard (10-touch point/Android, 20-touch point/Windows)
Embedded tools (Word/PPT/PDF/Excel Viewer, gadgets)
Advanced Features:
Specification
| Model No: | TWB-6519A | TWB-7519A | TWB-8619A |
| Backlight | LED | ||
| Display Area (mm) | 1429 x 804 | 1650 x 928 | 1895 x 1066 |
| Active Screen Size | 65" | 75" | 86" |
| Display Ratio | 16:9 | ||
| Resolution | 3840 x 2160 pixels (4K) | ||
| Display Color Depth | 8-bit | 10-bit | |
| Brightness | 370nit | ||
| Contrast Ratio | 4000:1 | 1200:1 | |
| Viewing Angle | 178 deg | ||
| Lifetime | 30,000 hrs | ||
| Speaker Position | Front | ||
| Max. Power Output | 15W x 2 (8 ohms) | ||
| Power Consumption | max 220W standby 0.5W | max 350W standby 0.5W | max 450W standby 0.5W |
| Working Voltage | AC 100 - 240V, 50/60Hz | ||
| Touch Surface | Tempered Anti-Glare & Anti-Fingerprint Glass | ||
| Transparency | 88% | ||
| Surface Hardness | 7H | ||
| Touch Points | Android 10-Touch / Windows 20-Touch | ||
| Writing Tools | Passive Pen / Finger / Palm | ||
| Communication Interface | USB-A | ||
| Storage Temp./Humidity | -20 to 60 C / 0 to 90 % | ||
| Working Temp./Humidity | 0 to 40 C / 20 to 80 % | ||
| Mounting (Optional) | Wall Mount / Floor Stand | ||
| Outline Dimensions | 1546 x 943 x 95 mm | 1770 x 1071 x 109 mm | 2019 x 1209 x 116 mm |
| Net Weight | 45 kg | 59 kg | 74 kg |
| Front Interface Inputs | HDMI 1.4 (4K@30Hz) x 1, USB (Touch) x 1, USB (Dynamic) x 2, MIC x 1 | ||
| AV Inputs | HDMI 2.0/1.4 (4K@60Hz) x 2, DP1.2 (4K@30Hz) x 1, VGA (1920x1080@60Hz) x 1, USB (Touch) x 4 |
||
| AV Outputs | HDMI Out (support 4K@60Hz, 1920x1080@60Hz) x 1 | ||
| Others | USB 2.0 (Dynamic) x 1, USB 3.0 (Dynamic) x 1, USB 2.0 Embedded x 1, RS232 x 1, RJ45 x 2, OPS Slots (4K@60Hz) x 1, Line Out x 1, SPDIF Out x 1 |
||
| Wi-fi Dongle | Available | ||
| CPU | ARM Cortex A73@2 + A53@2 | ||
| RAM | 3GB | ||
| ROM | 16G | ||
| Android Version | 8 | ||
